Capitalization Table

Step-by-Step Guide to Understanding the Cap Table in Startup Investing

Last Updated February 25, 2024

Learn Online Now

Capitalization Table

How Does a Cap Table Work?

From a high level, a capitalization table serves as an extension of the term sheet by tracking the impact on the ownership structure of a venture-backed startup.

Since this article will assume an basic understanding of the terminology used in venture capital (VC), we recommend reading our guide on term sheets prior to going through this one.

To begin, a VC cap table tracks the equity ownership of a company in terms of the number and type of shares (as well as series) along with any special terms such as liquidation preferences or protection clauses.

The VC cap table for a start-up can start off quite simple at first, initially including just the founders and/or the first handful of employees. But as the company’s employee base grows and more outside investors join in, it can quickly become more complicated.

For this reason, a cap table must be used and kept up-to-date to calculate the dilutive impact from each funding round, employee stock options, and issuances of new securities.

Thus, all stakeholders can accurately calculate their share of the proceeds in a potential exit (i.e. liquidation event such as a sale to a strategic or IPO).

Cap Table Example

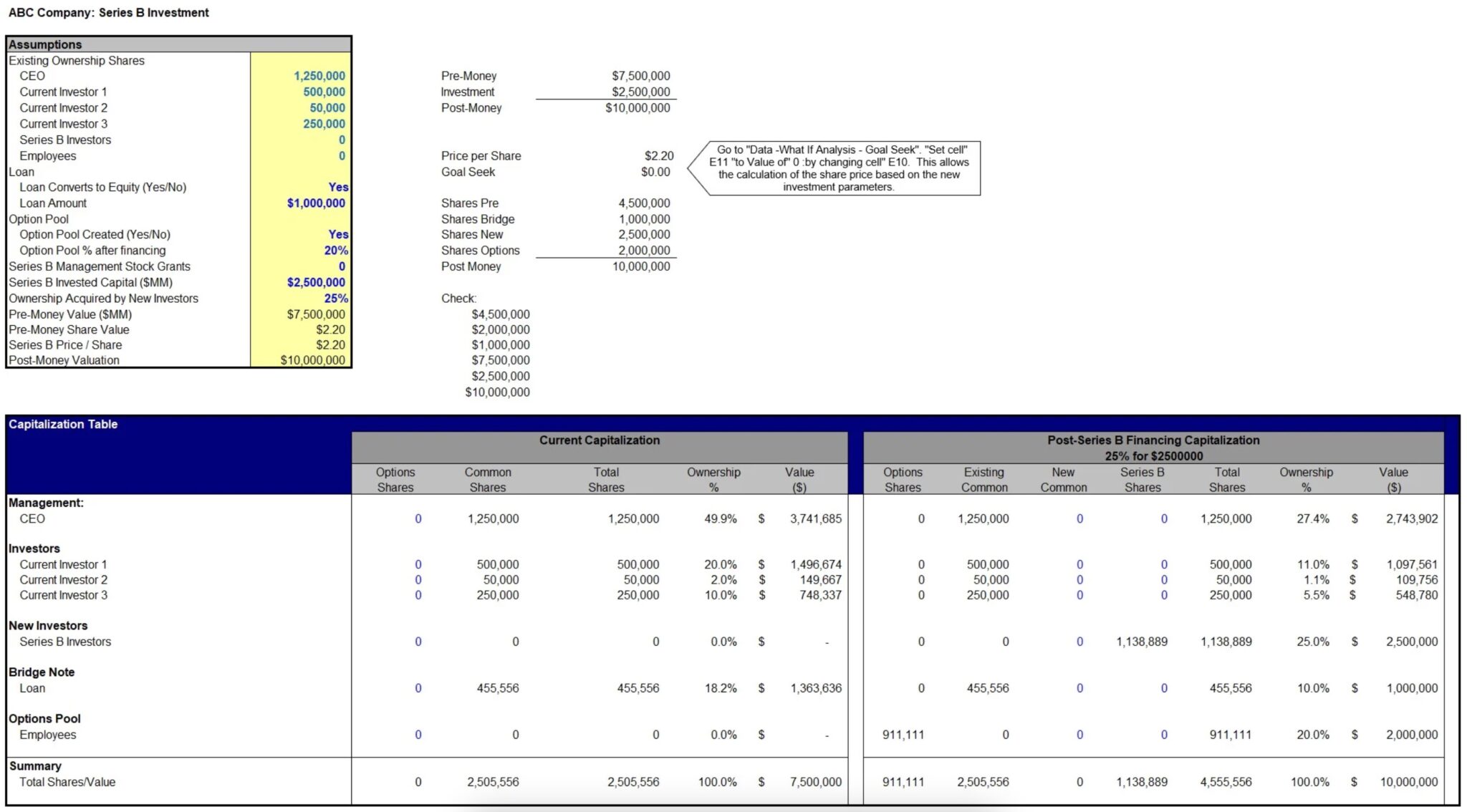

While cap table software programs are available, most cap tables are still tracked in an Excel spreadsheet similar to the one shown above.

How to Calculate the Cap Table

The capitalization table is updated after each investment round, as designated by the term sheet.

A few of the key items that change on the cap table after a new funding round include:

  • Valuation and price per share
  • New investors and/or classes of securities (e.g. Series B Preferred)
  • Employee option grants and warrants (either allocated or unallocated)
  • Debt that has converted to equity

VC cap tables can also be updated as investors exit the company and/or employees leave the company, however, most changes on the cap table are dilutive, meaning the equity ownership percentage of each entity will decrease as more investors join the company.

As long as the company’s valuation is increasing (known as an “up round”), dilution is acceptable, as shown in the following example:

  • The founder owns 100% of a company worth $5M
  • The next round values the company at $20M, but the new investors want to own 40%
  • The founder’s stake of 60% is now worth $12M despite the dilution (i.e., from 100% down to 60%)

As a general convention, VC cap tables group similar parties together.

For example, a cap table can show the company’s founders and key employees first, followed by venture investors, and then angel or minority investors such as family and friends. A cap table may also rank all stakeholders by ownership percentage, generally from largest to smallest.

On a standard cap table, the individual or firm name is listed in one column, followed by their shares in the second column, and then their ownership percentage will be recorded in the last column. The date of investment can also be included.

A typical cap table shows all shares on a fully diluted basis, which means all shares are accounted for, even if they have not been granted or earned yet.

Case in point is a new employee that shows 5% ownership in options that have been granted on her hire date, even though she will not receive the options until they vest, at 25% per year. Should the employee leave the company, her unvested options are forfeited and do not go with her.

There can also be unallocated options on a cap table, which will be allocated as key employees are hired in the future.

The Wharton Online
and Wall Street Prep Private Equity Certificate Program

Level up your career with the world's most recognized private equity investing program. Enrollment is open for the Sep. 9 - Nov. 10 cohort.

Enroll Today

What is the Role of the Cap Table for Startups?

In addition to showing current equity ownership, a capitalization table is useful for the following:

  • Performing an ownership scenario analysis by existing investors of a contemplated next round of investment at various pre-money valuations
  • Conducting due diligence by new investors or potential acquirers
  • Building 409A valuations and identifying any unallocated options available for new employee hiring
  • Performing an analysis of expected returns and proceeds to various providers of capital based on certain exit valuation assumptions
  • Legal ownership and tax compliance

The VC cap table becomes obsolete after the company changes ownership, either via purchase or IPO.

Cap Table Model – Excel Template

Use the form below to download a complete capitalization table example:


Get the Excel Template!

By submitting this form, you consent to receive email from Wall Street Prep and agree to our terms of use and privacy policy.


Startup Cap Table Calculation Example

At its simplest, the equity ownership on a VC capitalization table should add up to 100%.

As events occur, such as new investors are added or debt converts to equity, the number of shares on the cap table must be updated to reflect any changes while still totaling 100%.

Let’s look at the calculations required to update the cap table with an example:

  • Assume a VC is asking for 10% of a company with an investment of $1 million (valued at $10M)
  • The company already has 100,000 outstanding shares (50% held by the founder and 50% held by an angel investor)

Question: How many new shares do the new Series A investor get with the investment?

Their new ownership stake can be calculated as:

New Ownership Stake = New Shares ÷ (Old Shares + New Shares)

Solving for their new shares results in the following formula:

New Shares = [Ownership Stake ÷ (1 Ownership Stake)] × Old Shares

Now applying the assumptions:

  • New Shares = [.10/(1-.10)] * 100,000
  • New Shares = 11,111

Checking the calculation, we can see their shares represent 10% of the new company.

  • 11,111 / (100,000 + 11,111) = 10%

The updated cap table is shown below:

Venture Capital Exits (VC) and Industry Trends

The law of returns of early-stage venture investments states that for every ten Series A investments, 20% (2) will pay, 40% (4) will break even & 40% (4) will fail.

This means that to meet the VC firm’s investor expectations, those who make money on the investment must make up for those that do not make money (i.e., the winners need to return a multiple of the fund).

After experiencing a COVID-19 related dip in Q2 2020 deal count, Q3 showed signs of improvement. As you can see from the figure below, the deal sizes have trended up pre-COVID despite the drop is deal count.

Q3 Deal Activity (Source: PitchBook)

Moreover, while the vast majority of VCs exit their investments through acquisitions, the dollar amounts of these exits are derived largely from IPOs, and more recently, from acquisitions.

The recent public listings of Snowflake (SNOW), Palantir (PLTR), Asana (ASAN), and Unity (U) all helped contribute towards this massive rebound in exit returns in Q3.

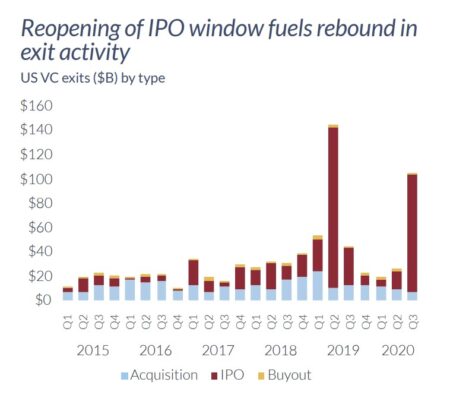

Q3 VC Exits (Source: PitchBook)

So while strategic M&A has historically accounted for the majority of exits and returns, these recent high-profile IPOs of venture-backed unicorns are creating all-time high returns for VCs.

Cap Table Modeling in Venture Capital Investing (VC)

The waterfall flow of funds shows how the proceeds of a liquidity event, such as an acquisition, flow to everyone on a cap table.

Using the example above (VC invests $1 million for a 10% stake in a company whose ownership was previously split 50-50 between the founder and an angel investor), let us allocate the proceeds assuming the company sells for $5M, or roughly half its initial valuation, five years later.

Some additional background information:

  • The Series A Preferred shares have a 1x non-participating liquidation preference
  • The conversion ratio of preferred to common is assumed to be 1:1

First, the Series A investor must decide to either take their preference (i.e., 1x their initial $1 million investment) or convert to common shares and take their pro rata share of the proceeds:

  • Preference amount = $1 million
  • Conversion amount = 10% of $5M or $500K

Clearly, the VC will take their preference for a 1x multiple of invested capital, which means they at least get their money back, however, this would be considered a loss on a time-valued basis. The founder and the angel investor would each get $2M.

Question: What if the company mentioned above were to sell for $100M?

In this case, the investor would convert to common shares and receive $10M, or 10% of the proceeds, while the founder and angel investor would each get $45M.

Demystifying Term Sheets and Cap Tables

The math can get increasingly complicated with more entities on the capitalization table.

For a deeper dive into cap tables, enroll in our Demystifying Term Sheets and Cap Tables Course, where we explore the respective negotiating positions of VCs and entrepreneurs, as well as dive into the more sophisticated math associated with venture-backed start-ups.

Included in our two-hour course is not only a comprehensive walk-through of the VC deal process, but several exercises to construct a capitalization table such as the one shown above.

The more advanced features, such as option pools, convertible debt, and liquidation preferences will also be introduced, which should be very applicable to anyone interested in a career in venture capital.
